DOUBLE CAR PORT

Double Car Port 5.5m clear span 6m deep. Supported on 70 x 70 box section posts. Finished in black nylon with matching 100mm black square flow gutter

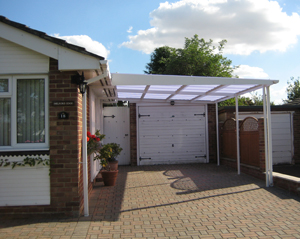

WALL MOUNTED CAR PORT

5.5m x 2.5m pitching over 2.5m span. Supports of 50mm x 50mm box form guttering to existing soakaway. White nylon polyester finish.

SPECIFICATION

Roof structure 1 : 100 x 50 x 20 2mm steel structure creating a loading capacity of 72k/sqm

Roof structure 2 : 150 x 75 x 20 2mm loading capacity of 101k/sqmStainless steel screws, nuts and hooks

Supports: 50mm dia. flocoat tubing

Box Supports: 70 x 70 and 100 x 100

Standard model: Entire metal structure finished in a protective coat of galvanise

Delux model: finished with a long life coating of nylon polyester for good looks and a maintenance-free life of many years, which comes in choice of colours

Roof Covering: Greca translucent complying with (Class 1 Fire Rating to BS47S-477) 10 year UV Protection Guarantee

Guttering: PVC square flow 115mm
